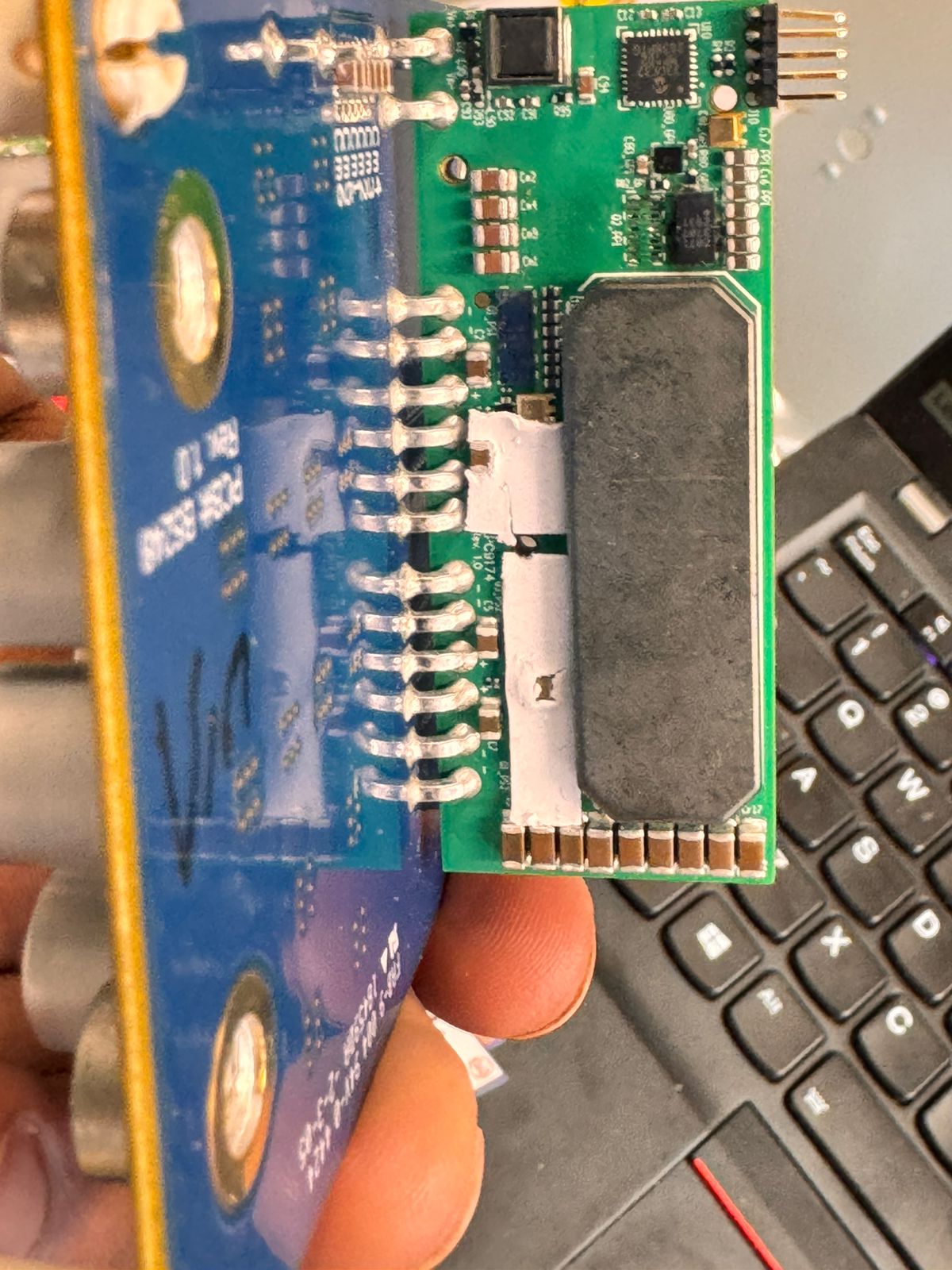

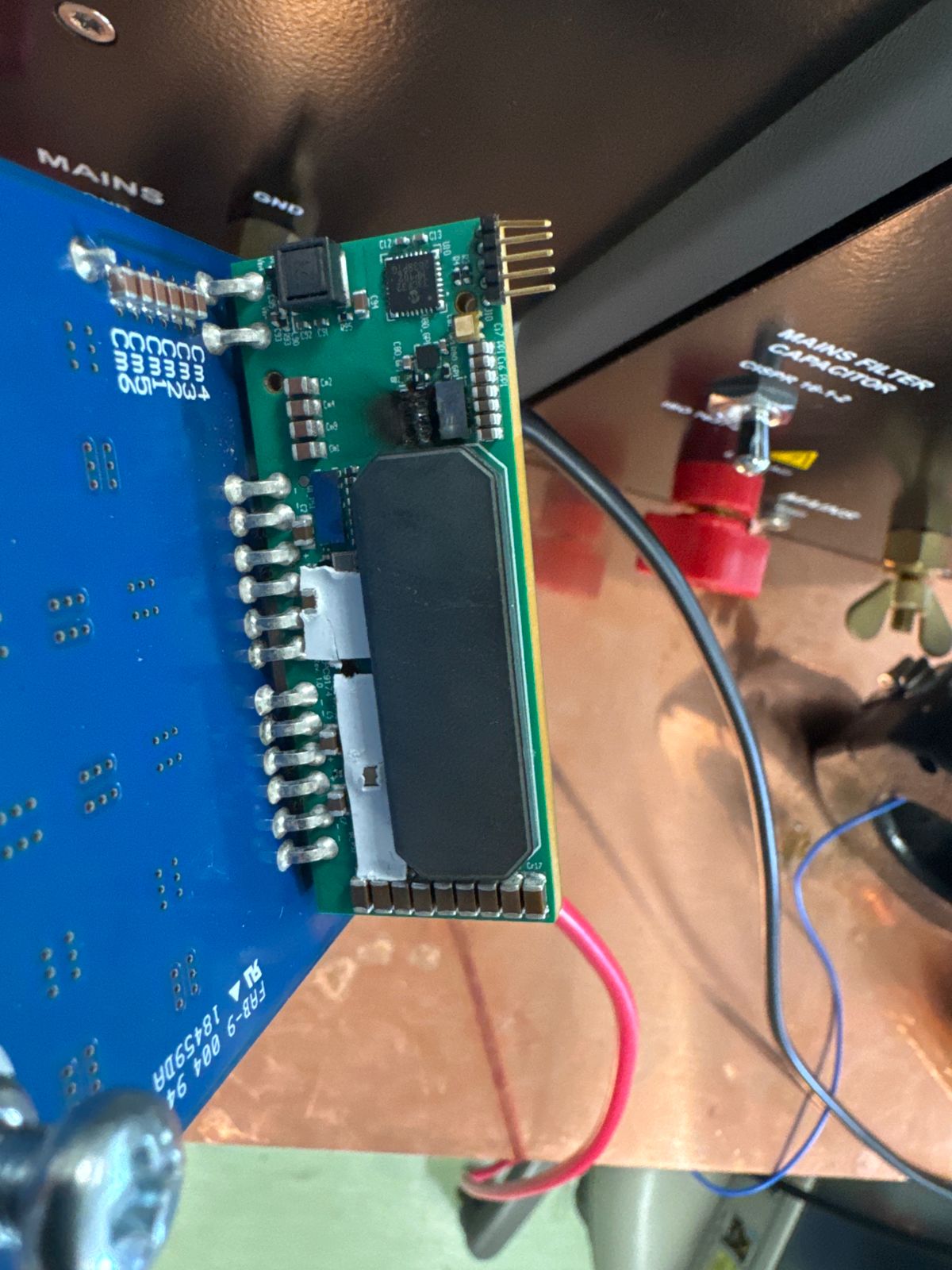

Hello. We purchased the evaluation board EPC9174 – 40 – 60 VIN, 10 – 15 V, 100 A Output 1.2 kW 1/8th Brick Reference Design Board at the Nagoya Institute of Technology last week for GAN switching conducted noise research. However, there has been an accidental blow up of the EPC2071 transistor due to a ground wire accidentally touching the high-side (drain) side during the probe placement.

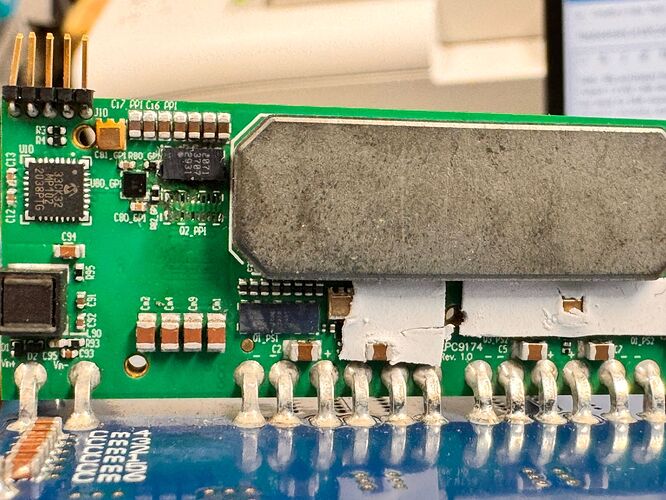

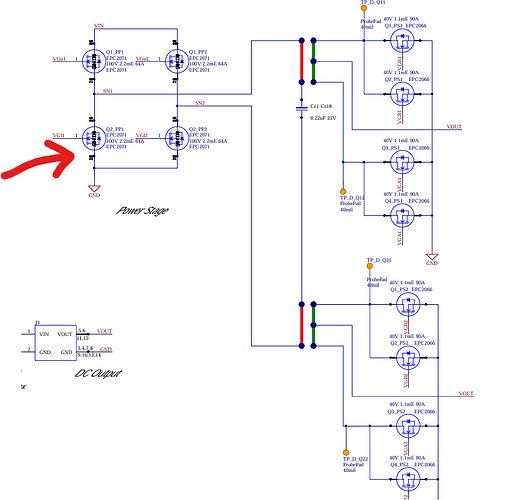

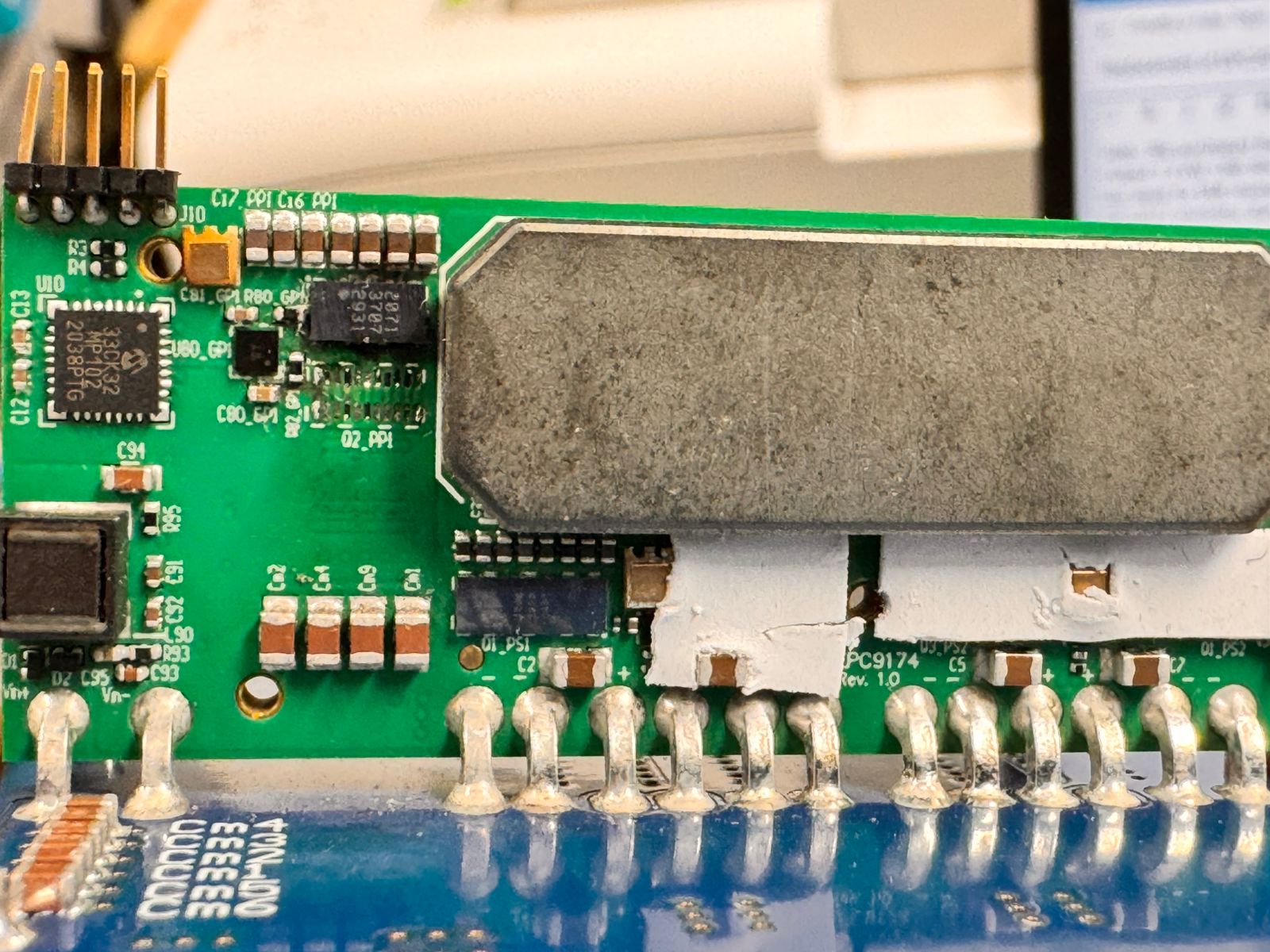

Can the EPC2071 2.2mE 64 A be replaced? The blown part is labeled Q2_PP1 on the schematic diagram. The metal pads still look visible even though the FET was completely blown and broken into two.
Hi Maina-san,
Thanks for your contact information in EPC website. FAE Pei (Pei-Cheng Huang pei-cheng.huang@epc-co.com) is responsible for your area.
Please leave your contact email or office address info, and we would help you to fix the issue an of accidental blow up of the EPC2071 transistor due to a ground wire accidentally touching the high-side (drain) side during the probe placement.
Best Regards
Pei
Pei-san,
Thank you for your response. My contact information is m.maina.489@stn.nitech.ac.jp
I look forward to hearing from you.
Best regards,
Maina
